JT 130 Outward Opening Wood Aluminum Composite Window with Integrated Inward Insect Screen
JT 130 Outward Opening Wood Aluminum Composite Window with Integrated Inward Insect Screen - 图片 2
JT 130 Outward Opening Wood Aluminum Composite Window with Integrated Inward Insect Screen - 图片 3
JT 130 Outward Opening Wood Aluminum Composite Window with Integrated Inward Insect Screen - 图片 4

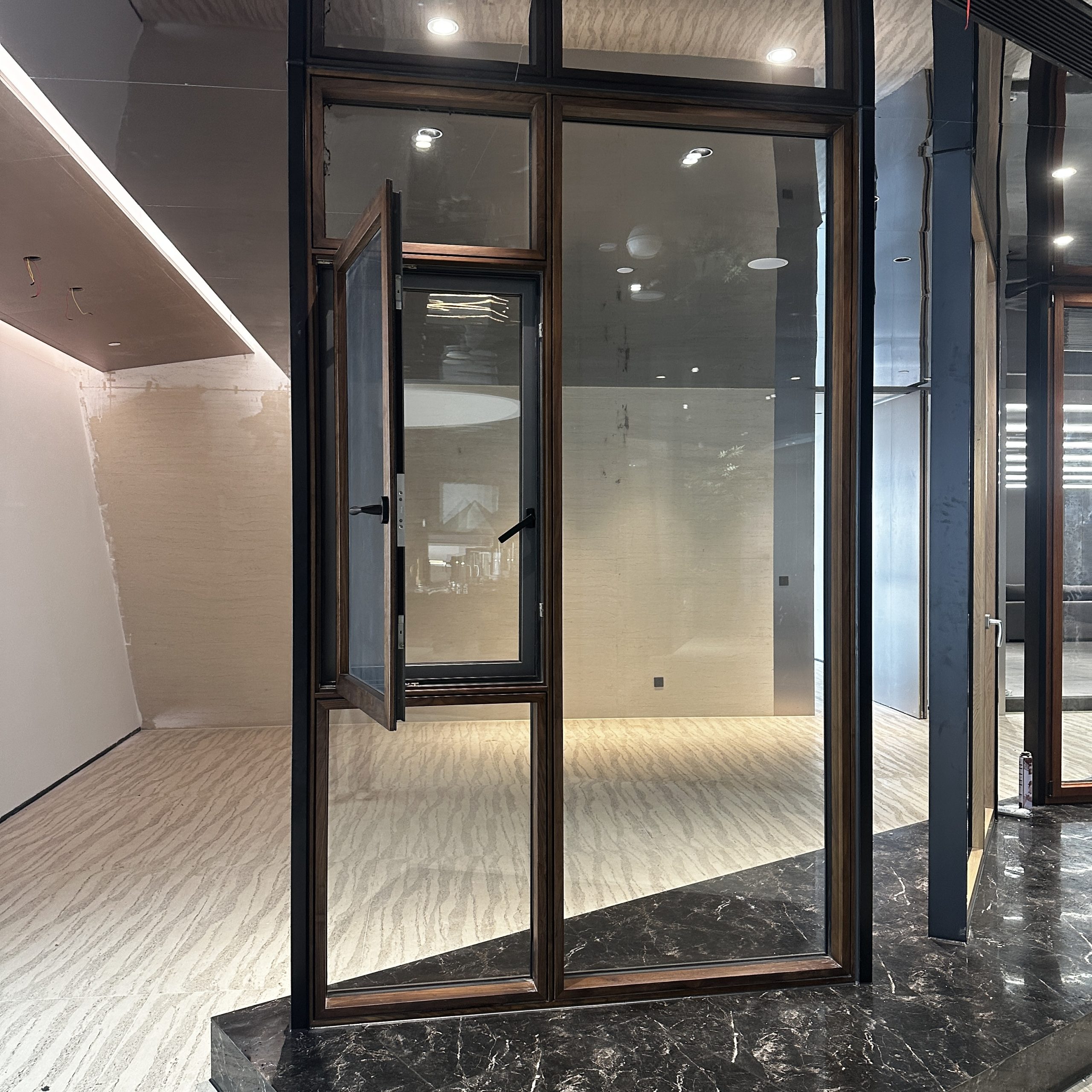

JT 130 Outward Opening Wood Aluminum Composite Window with Integrated Inward Insect Screen

1. Brand Name: Jutong
2. Opening Style: Outward opening, with integrated inward-opening insect screen
3. Aluminium Alloy: 6063-T5 primary aluminium
4. Timber (interior): American red oak (standard); other species options

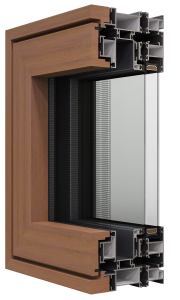

5. Outer Frame: Depth 130 mm, wall thickness 1.6 mm, face width 20 mm
6. Glazing Sash: Depth 58 mm, wall thickness 1.6 mm, face width 60 mm
7. Insect Screen: 316 stainless steel high-permeability mesh, integrated inward-opening
8. Glazing: Xinyi primary glass 5G + 18A + 5G, double tempered clear, one-piece bent black warm-edge spacer, single-side film
9. Handle: Original imported German HOPPE handle
10. Hardware: Jutong custom outward-opening hardware with friction stays
11. Process Standard: Seamless welding with glue-injected crimped corners — stronger, safer and better looking
12. Warranty: 10 Years
13. Application: Residential, Commercial
14. Performance: Thermal broken, soundproof, wind-pressure resistant

  • Full-perimeter seamless aluminium welding with glue-injected crimped corners — stronger and safer joints with a clean, minimal appearance and a slim-frame look.
  • Primary 6063-T5 aluminium — higher hardness and greater toughness than recycled alloy, for lasting dimensional stability.
  • Solid timber panels — more durable and better looking, with multiple timber species to choose from.
  • 15-year colourfast warranty — powder fluorocarbon coating protects against fading, chalking and corrosion.
  • German Remmers water-based timber paint — two primers and two topcoats, low-odour and environmentally friendly, keeping the grain open and natural.
  • Flush frame inside and out with a full-width glazing bead — a flat, elegant line on both faces of the window.
  • Integrated ultra-clear high-transparency screen — keeps out even the smallest insects while preserving the view.
  • Original imported German HOPPE handle with mushroom-head multi-point locking — transmission parts run around the sash, giving a tighter seal and stronger anti-burglary performance.
  • Double tempered insulated glass — high resistance to wind load and impact.
  • Hidden drainage with concealed insect cover — drains water invisibly while stopping mosquitoes and preventing rainwater backflow.
Element Standard Supply Optional Upgrades
Interior timber American red oak Other timber species available from the selection range
Timber finish Imported water-based paint, two primers and two topcoats Custom stain tones to match existing joinery or flooring
Exterior aluminium finish powder fluorocarbon coating, 15-year colourfastness Colour selection from the Jutong colour card; dual-colour interior / exterior combinations on request
Spacer finish One-piece bent black warm-edge spacer Light-grey spacer to match pale interiors



  • Double Tempered Glass (5mm+12air+5mm)
  • Tempered Laminated Glass (5mm+12air+0.76pvb+5mm)
  • Triple Tempered Glass (5mm+9air+5mm+9air+5mm)
  • Glass types: Frosted glass, Tempered glass, Low-e coated glass

     The insect screen is part of the system, not an add-on — it opens inward, independently of the outward-opening sash.

  • 316 stainless steel high-permeability mesh — fine enough to stop the smallest insects while keeping the view clear.
  • The mesh screen is colour-coated together with the window to match perfectly.
  • Screen frames are manufactured in aluminium alloy — strong enough to keep the mesh tight for years to come.

We offer three grille solutions: internal grilles, between-the-glass grilles, and external grilles.

  • Between-the-glass grilles: enhance aesthetic appeal and allow for easy glass cleaning.
  • These grilles are built with spacer bars fitted inside the insulated glass unit, between two panes.
  • Grilles are available in custom colors to match your selected window exterior finish.

Operation and security are handled by a Jutong custom hardware set driven by an imported German handle, with multi-point locking around the sash perimeter.

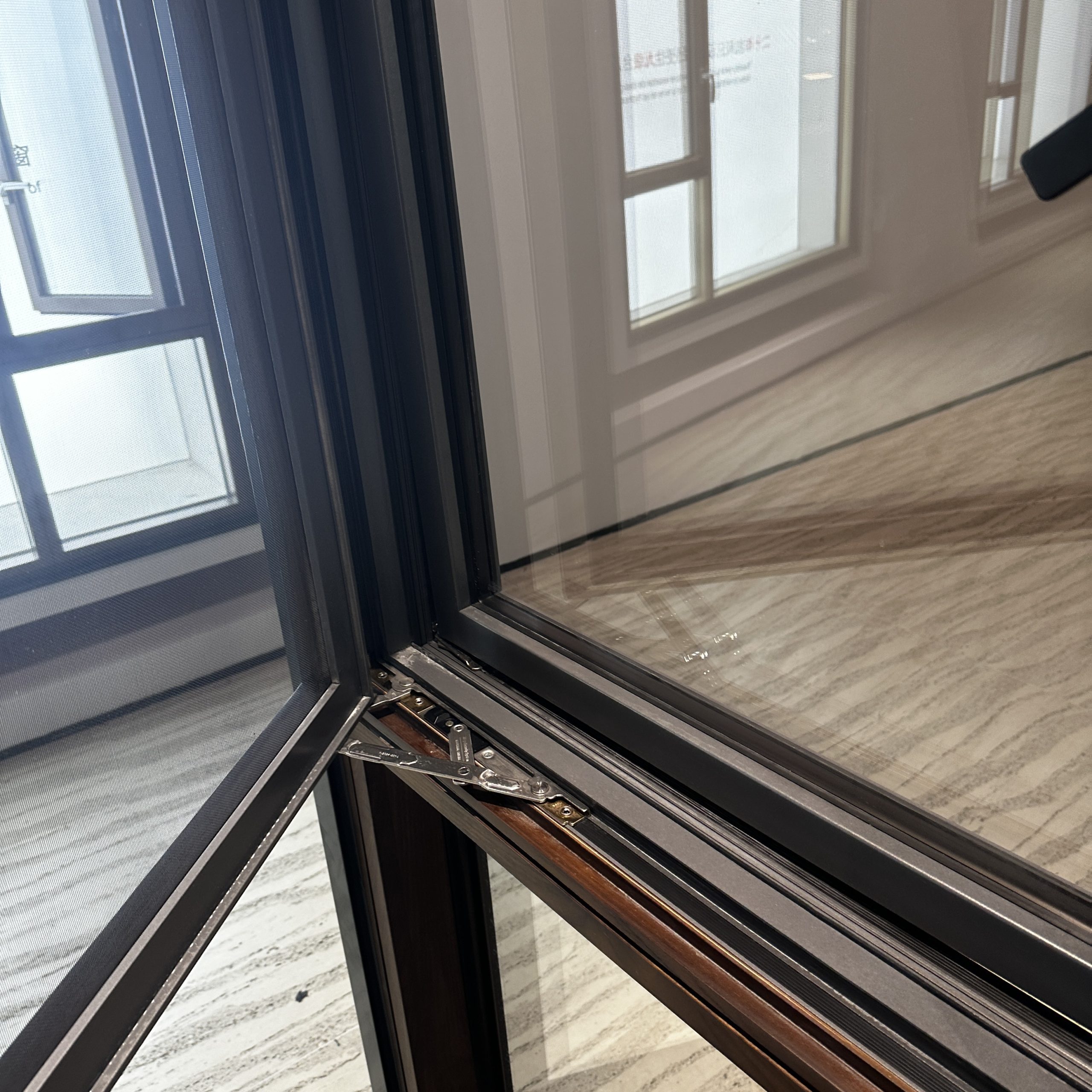

  • Jutong custom outward-opening hardware with friction stays — matched to the 58 mm sash profile and rated for large sashes.

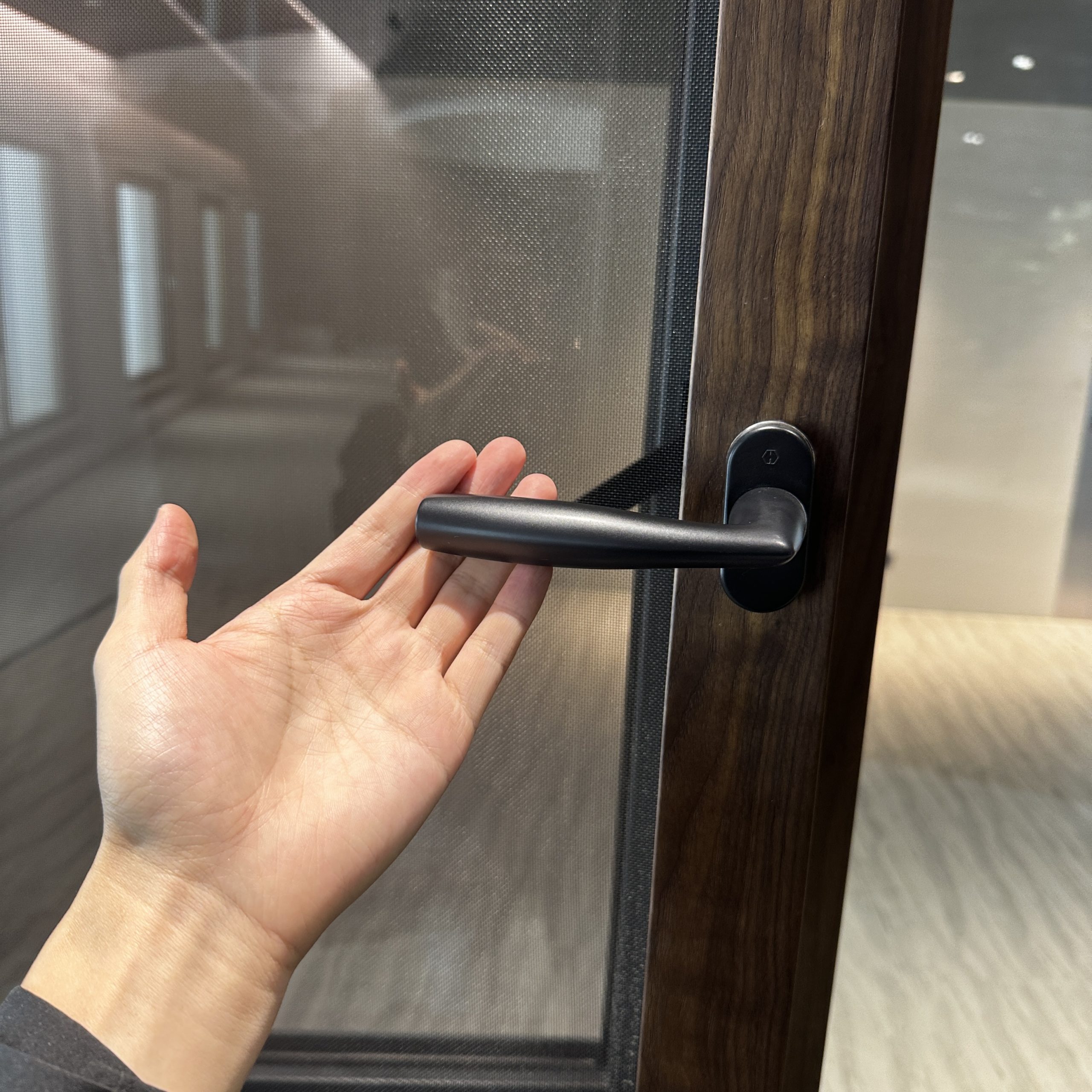

  • Original imported German HOPPE handle — precise operation and long service life.
  • Mushroom-head multi-point locking — transmission parts run around the full sash perimeter for a tighter seal and stronger anti-burglary performance.
