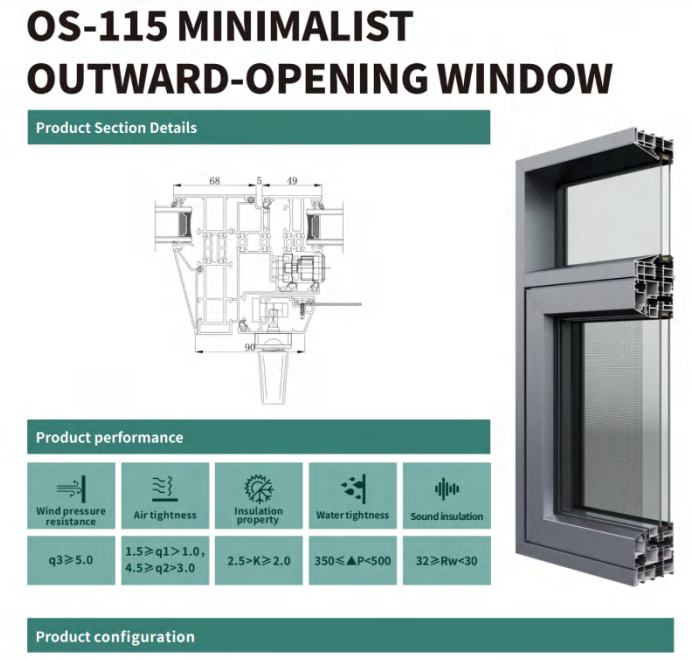

Product Section Details
Product performance
Wind pressure resistance：q3≥5.0
Air tightness：1.5≥q1＞1.0；4.5≥q2＞3.0
Insulation property：2.5≥K≥2.0
Water tightness：350≤ΔP≤500
Sound insulation：32≥Rw＜30
Product configuration
Opening method: Outward-opening
Alloy material: Aluminum alloy 6060-T66 profile
Outer frame: Visible face thickness 28mm, wall thickness 1.8mm
Glass sash: Visible face thickness 55mm, wall thickness 1.8mm
Glass: CSG/Xinyi Group glass original 5G+18A+5G
Handle: GIESSE Screen Operator,Bespoke Flush Sash Operator
Hardware system: GIESSE Italian C-groove hardware system
Surface treatment: Powder fluorocarbon spray
