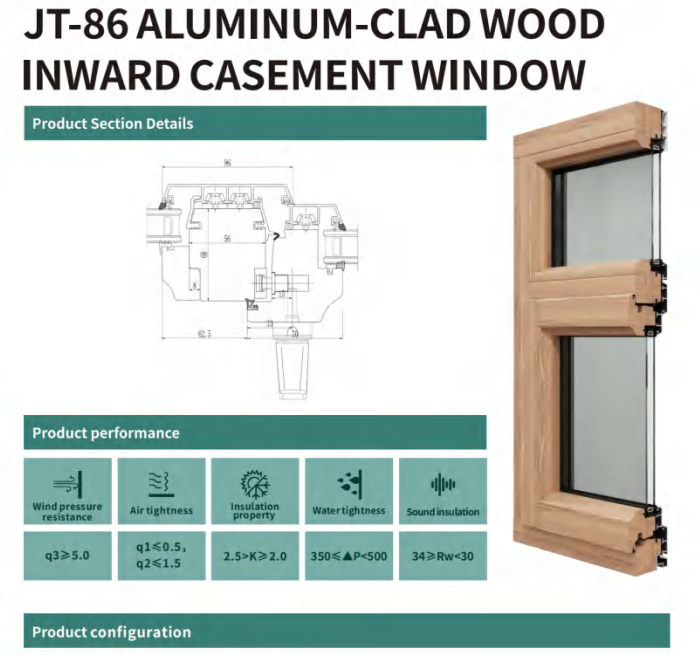

Product Section Details
Product performance
Wind pressure resistance：q3≥5.0
Air tightness：q1≤0.5，q2≤1.5
Insulation property：2.5＞K≥2.0
Water tightness：350≤△P＜500
Sound insulation：34≥Rw＜30
Product configuration
| Opening method: Inward Opening & Tilt |
| Alloy material: Aluminum alloy 6063-T5 profile |
| Timber: The standard configuration is yellow teakwood; other rare and valuable timbers available for upgrade |
| Outer frame: Visible face thickness 48/75mm, wall thickness 1.8mm |
| Glass sash: Visible face thickness 70mm, wall thickness 1.6mm |
| Glass: CSG/Xinyi Group glass original 5G+15A+5G |
| Handle: German original HOPPE handle |
| Hardware system: AGB Italian concealed U-groove hardware |
| Surface treatment: Powder fluorocarbon spray |
