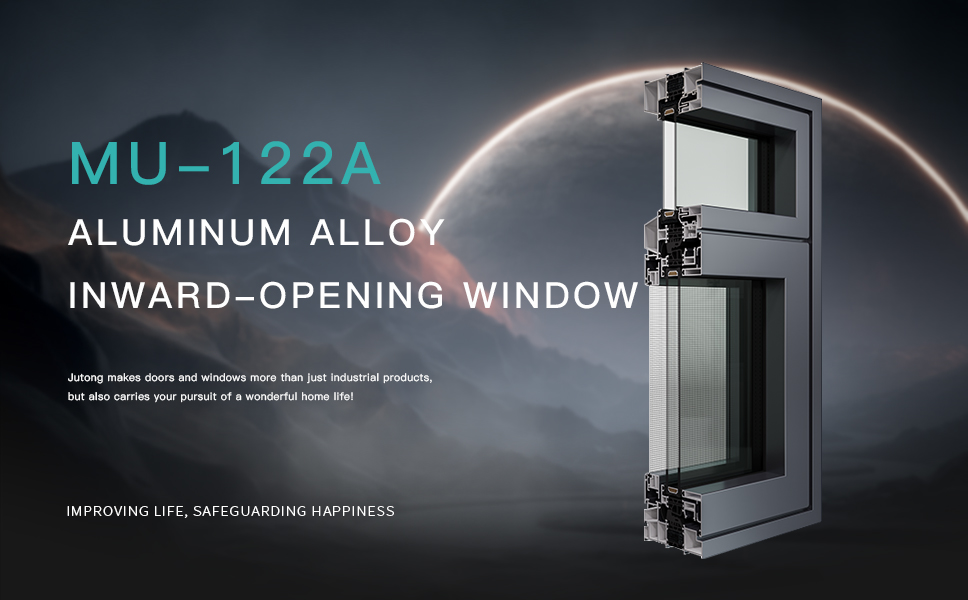

MU 122A Aluminum Alloy Internal Opening and Inward Tilt Window

Aluminum Window

MU 122A Aluminum Alloy Internal Opening and Inward Tilt Window

Opening Method: Double internal opening

Alloy Material: Titanium-copper primary aluminum T6063-T5

Outer Frame: Frame thickness 122mm, wall thickness 2.0mm, width 24/60mm

Glass Sash: Sash thickness 82.5mm, wall thickness 2.0mm, width 56mm

Glass: Nippon/Sez glass original 5G+18A+5G, double tempered white glass, integrated bent hollow black edge spacer bar, single-side film

Handle: German original HOPPE handle

Hardware System: Italian imported AGB concealed U-groove hardware system, capable of bearing 150kg

Surface Treatment: Dutch Akzo powder fluorocarbon spray, color does not fade for 15 years

Craftsmanship Standard: Seamless welding and corner code injection molding process, for enhanced safety, durability, and aesthetics

Locking Point/Transmission:Transmission parts rotate around the sash, mushroom head multi-lock point RC2 anti-theft, stronger lateral middle lock sealing, safer


JOIN TEH INQUIRY
  • Product name
  • Intimate service

mu-122A 铝合金内开窗.jpg

Appearance and Structural Craftsmanship:

Aluminum Material: Seamless welding and corner code injection molding process, narrow frame minimalist design

Profile: Using titanium-copper primary aluminum, higher hardness, stronger toughness

Surface: Dutch Akzo powder fluorocarbon spray, color does not fade for 15 years


1. Three-seal design for strong air tightness and water tightness

2. Inner and outer flat frames, overall pressure line design, elegant and generous

3. Ultra-clear high-transparency window screen to prevent small insects from entering

4. Internal opening sash with inverted R5 rounded corner design for added safety

5. Equipped with lifting accessories to prevent falling and deformation

6. Rubber strip adopts bendable integrated design for higher air tightness and water tightness

7. Transmission parts rotate around the sash, mushroom head multi-lock point anti-theft, stronger sealing, safer

8. Double tempered glass for strong wind pressure resistance

9. Middle rail drainage adopts diversion hidden drainage

10. Frame and sash isothermal line design, using large cross-section multi-cavity 35.3mm thermal barrier.
