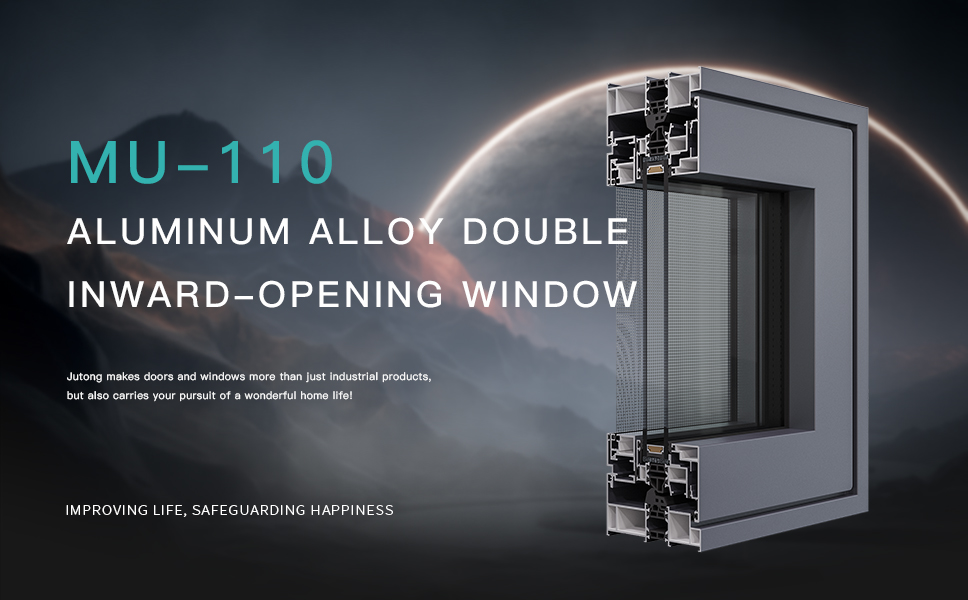

MU 110 Double Internal Opening System Window (with internal opening screen)

Aluminum Window

MU 110 Double Internal Opening System Window (with internal opening screen)

Opening Method: Double internal opening

Alloy Material: Titanium-copper primary aluminum T6063-T5

Outer Frame:Frame thickness 110mm, wall thickness 1.8mm, width 19.5/55.5mm

Glass Sash: Sash thickness 72mm, wall thickness 1.6mm, width 63mm

Screen: Stainless steel 316 high-transparency screen

Glass: Nippon/Sez glass original 5G+18A+5G, double tempered white glass, integrated bent hollow black edge spacer bar, single-side film

Handle: German original HOPPE handle

Hardware System: Italian imported AGB concealed U-groove hardware system, capable of bearing 150kg

Surface Treatment: Dutch Akzo powder fluorocarbon spray, color does not fade for 15 years

Craftsmanship Standard:Seamless welding and corner code injection molding process, for enhanced safety, durability, and aesthetics

Locking Point/Transmission:Transmission parts rotate around the sash, mushroom head multi-lock point RC2 anti-theft, stronger lateral middle lock sealing, safer

JOIN TEH INQUIRY
  • Product name
  • Intimate service

MU-100 铝合金双内开窗.jpg

Appearance and Structural Craftsmanship:

Aluminum Material:Seamless welding and corner code injection molding process, narrow frame minimalist design

Profile: Using titanium-copper primary aluminum, higher hardness, stronger toughness

Surface: Dutch Akzo powder fluorocarbon spray, color does not fade for 15 years

Glass: Double tempered glass, strong wind pressure resistance


1. Three-seal design for strong air tightness and water tightness

2. Inner and outer flat window frames, overall pressure line design, elegant and generous

3. Internal opening sash with inverted R5 rounded corner design for added safety

4. Equipped with lifting accessories to prevent falling and deformation

5. Inverted rounded corner design for safety, U-groove design

6. Transmission parts rotate around the sash, mushroom head multi-lock point anti-theft, stronger sealing, safer

7. Italian imported AGB concealed U-groove hardware system, capable of bearing 150kg

8. Sealing rubber strip: Using EPDM soft and hard co-extruded bendable rubber strip, elegant and atmospheric

9. Hidden drainage with mosquito-proof cover to prevent insects and rainwater backflow effectively

10. Energy-saving with multi-cavity high-temperature insulation strip.
