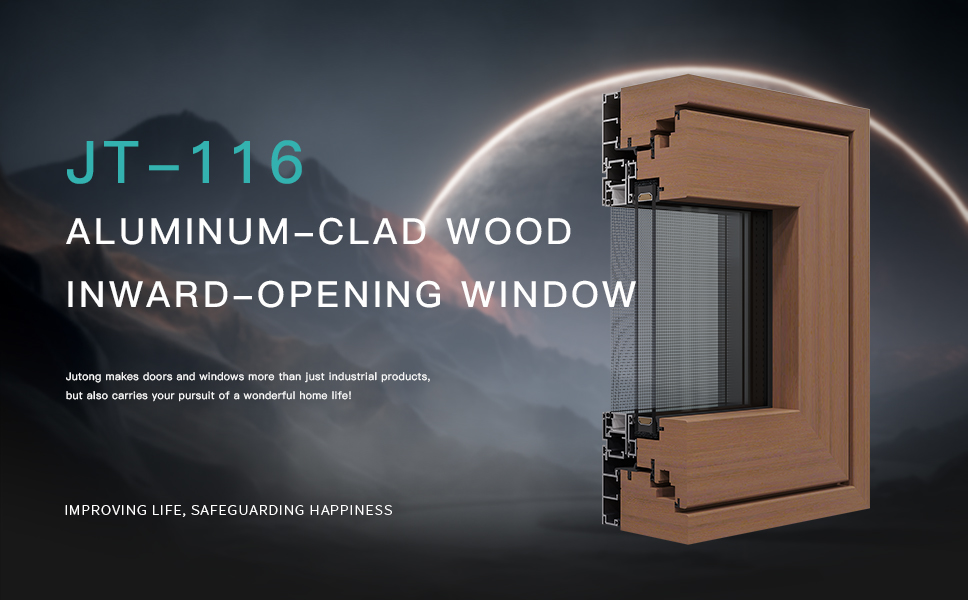

JT 116 Aluminum clad wood internal opening system window

Aluminum And Wood Window

JT 116 Aluminum clad wood internal opening system window

Opening Method: Inward Opening

Alloy Material: Titanium-Copper Primary Aluminum 6063-T5

Wood Material: American Red Oak (standard)

Outer Frame: Frame thickness 116mm, wall thickness 2.0mm, width 25/74mm

Glass Sash: Sash thickness 77mm, wall thickness 2.0mm, width 75mm

Screen: Stainless Steel 316 high-transparency mesh

Glass: South Glass/Xinyi Glass original piece 5G+18A+5G, double tempered white glass, integrated bendable hollow black edge spacer bar, single side film-coated

Handle: German original imported HOPPE handle

Hardware System: Italian imported AGB concealed U-groove hardware system, load-bearing capacity of 150kg

Surface Treatment: Dutch Akzo powder fluorocarbon spray, no fading for 15 years

Craftsmanship Standard: Seamless welding technology, more secure, sturdy, and aesthetically pleasing

Lock Point/Locking Seat/Transmission: Transmission components rotate around the sash, mushroom head multi-lock points at RC2 level anti-theft, stronger sealing with lateral middle lock, safer


JOIN TEH INQUIRY
  • Product name
  • Intimate service

jt-116 铝包木内开窗.jpg

Appearance and Structural Technology:

Aluminum: Utilizes comprehensive seamless welding technology for increased safety, sturdiness, aesthetics, and narrow frame with minimalist design

Profile: Aluminum alloy uses Titanium-Copper Primary Aluminum for higher hardness and toughness

Wood: Panel uses seamless single-board wood, durable with high aesthetics, and various choices available

Surface: Dutch Akzo powder fluorocarbon spray, guaranteed not to fade for 15 years


1. Opening sash: 4-seal design for strong air tightness and water tightness

2. Inner and outer flat frames, large pressure line design, elegant and generous

3. Equipped with lifting accessories to prevent deformation from falling

4. Transmission components rotate around the sash, mushroom head multi-lock points structure meets RC2 level anti-theft standards

5. Stronger sealing with lateral middle lock, safer

6. Detachable high-transparency mesh for easy cleaning, using transmission rod lock points for safety and stability

7. Uses German Remmers water-based paint, two base coats and two surface coats

8. Frame pressure line: EPDM soft-hard co-extruded small rubber strip for a stylish and atmospheric look

9. Hidden drainage system with mosquito-proof cover, effectively prevents insects and rainwater backflow
