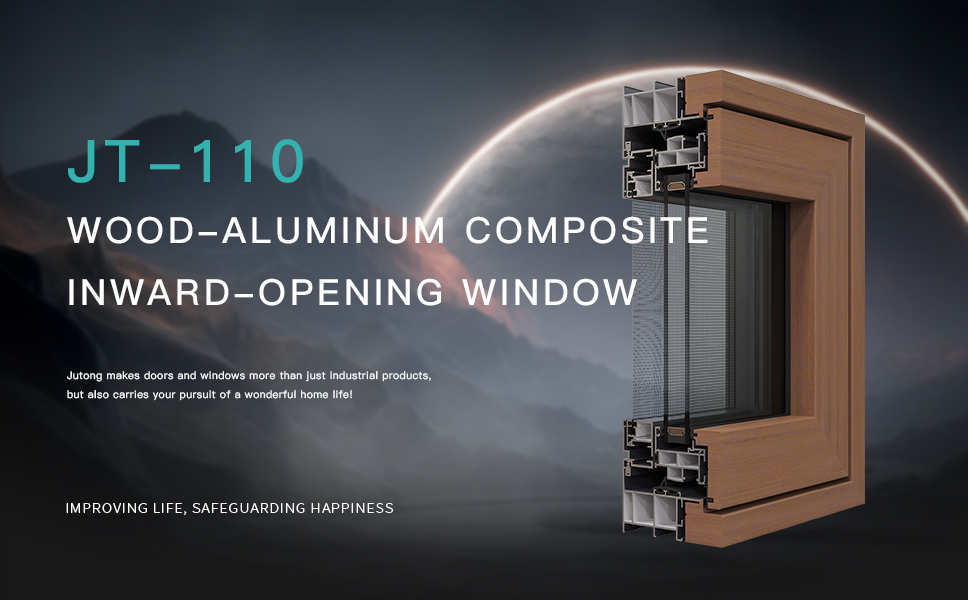

JT 110 Wood-Aluminum Composite Inward Opening System Window

Aluminum And Wood Window

JT 110 Wood-Aluminum Composite Inward Opening System Window

Opening Method: Double Inward Opening

Alloy Material: Titanium-Copper Primary Aluminum 6063-T5

Wood Material: African Mahogany/American Red Oak (standard)

Outer Frame: Frame thickness 110mm, wall thickness 1.6mm, width 36.5/66mm

Glass Sash: Sash thickness 71mm, wall thickness 1.6mm, width 65mm

Screen: Stainless Steel 316 high-transparency mesh

Glass: South Glass/Xinyi Glass original piece 5G+18A+5G, double tempered white glass, integrated bendable hollow black edge spacer bar, single side film-coated

Handle: German original imported HOPPE handle

Hardware System: Italian imported AGB concealed U-groove hardware system, load-bearing capacity of 150kg

Surface Treatment: Dutch Akzo powder fluorocarbon spray, no fading for 15 years

Craftsmanship Standard: Seamless welding technology, more secure, sturdy, and aesthetically pleasing, minimalist series

Lock Point/Locking Seat/Transmission: Transmission components rotate around the sash, mushroom head multi-lock points for anti-theft, stronger sealing with lateral middle lock, safer


JOIN TEH INQUIRY
  • Product name
  • Intimate service

jt-110 铝木复合内开窗.jpg

Exterior and Structural Craftsmanship:

Aluminum: Utilizes comprehensive seamless welding technology for increased safety, sturdiness, aesthetics, narrow frame with minimalist design

Profile: Aluminum alloy uses Titanium-Copper Primary Aluminum for higher hardness and toughness

Wood: Panel uses seamless single-board wood, durable with high aesthetics, and various choices available

Surface: Dutch Akzo powder fluorocarbon spray, guaranteed not to fade for 15 years

Inner and outer flat frames, large pressure line design, elegant and generous


1. Opening sash: 3-seal design for strong air tightness and water tightness

2. Equipped with lifting accessories to prevent deformation from falling

3. Transmission components rotate around the window sash, mushroom head multi-lock points structure meets RC2 level anti-theft standards

4. Stronger sealing with lateral middle lock, safer

5. Detachable high-transparency mesh for easy cleaning

6. Uses German Remmers water-based paint, two base coats and two surface coats

7. Frame pressure line: EPDM soft-hard co-extruded small rubber strip for a stylish and atmospheric look

8. Hidden drainage system with mosquito-proof cover, effectively prevents insects and rainwater backflow
